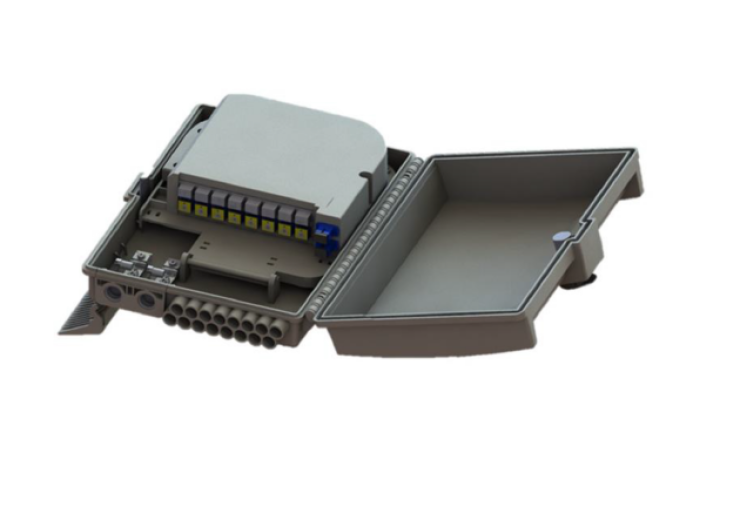

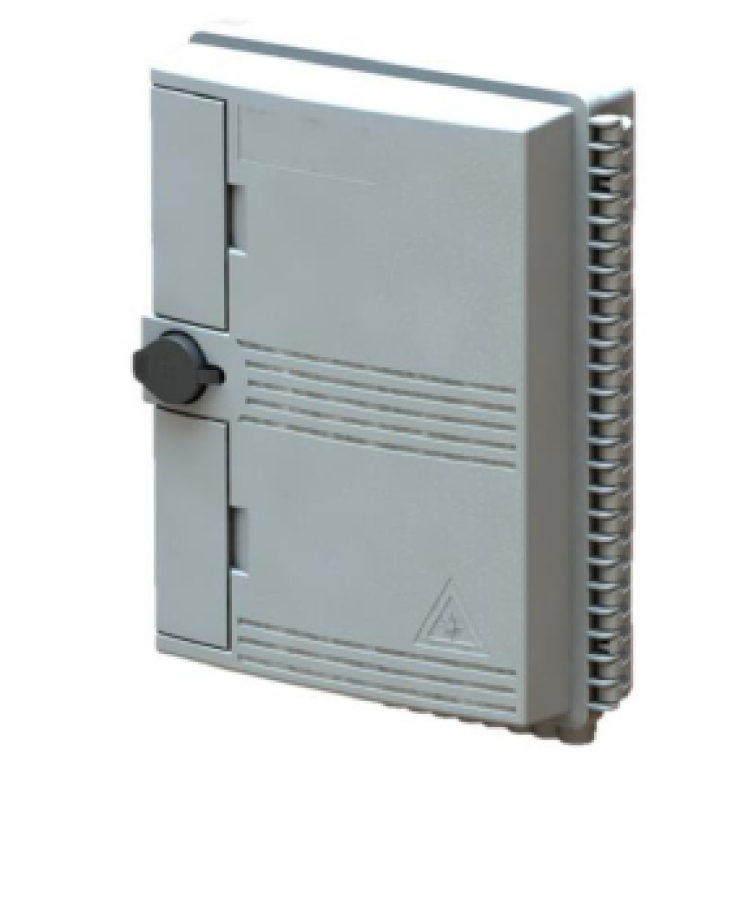

OPTICAL DISTRIBUTION POINT 8/16 PORT MODULAR SPLITTER

The equipment is used as termination point or connection for the distribution cable to connect with drop cable in FTTx comunication network system. The fiber splicing, spliting, distribution can be done in the box, and meanwhile it provides solid protection and management for FTTx network building.

Category: Garbart

FAT 8-16 core with modular splitter, this is improvement easy connection and improving the design of the previous FAT model. reparing and simplyfying the fiber connection system with the modukar splitter can reduse the level of connection disturbance and reduse connection interfence from the cable reel path cord splitter box.

Specification	Environmentalrequirment Working temperature : -40°C ~ +85°C Relative humadity : ≤85% (+30°C) Atmospheric pressure : 70Kpa ~ 106Kpa Main technical datasheet Insertion loss : ≤0.2db UPC return loss : ≥50db APC return loss : ≥60db Life of insertion and extraction : >1000 times Thunder-proof technical datasheet The grounding device is isolated with cabiniet, isolation resistance is less then 2x10⁴ MΩ/500V (DC) ; IR≥2x10⁴ MΩ/500V

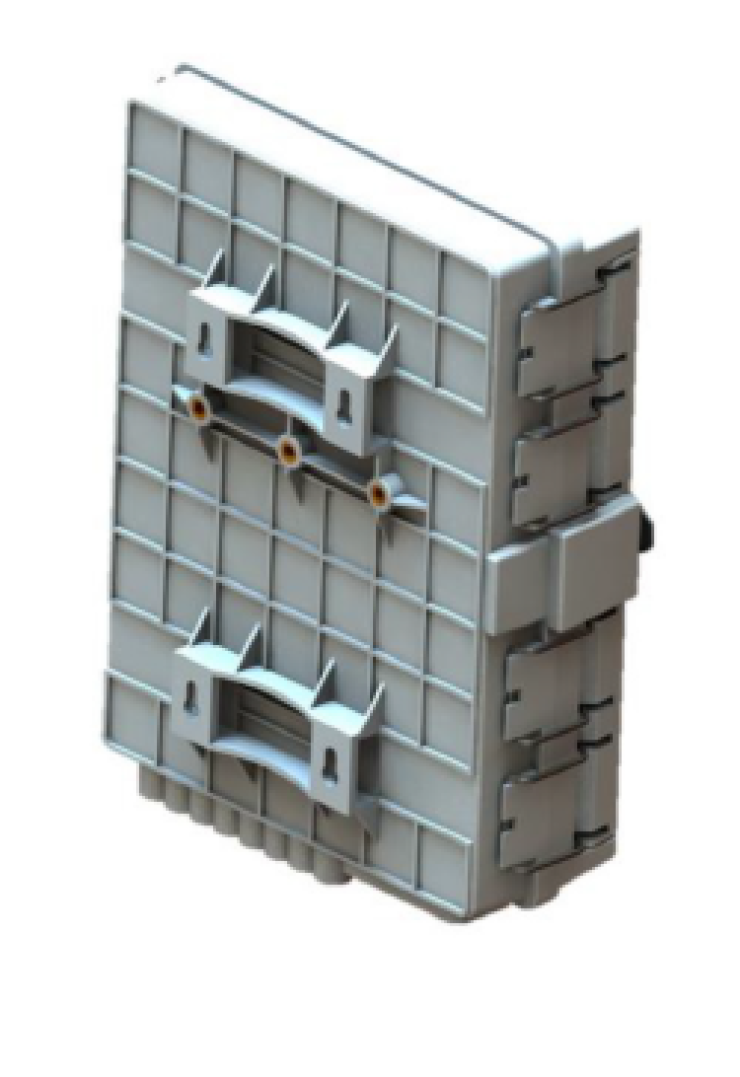

Feature	Total enclosed structure. Material: PC-ABS, waterproof, dust-proof, anti-aging, protection level up to IP65. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one. Cable uplink input over pigtail running trough own path without disturbing each other using modular splitter with type SC/LC adaptor installation, easy maintenance. Distribution panel can be flipped up, distribution cable can be placed in cup-joint way, easy for maintenance and installation. Cabinet can be installed by the way of wall-mounted or poled-single mounted, suitable for both indoor and outdoor uses. Have 2 port SC adapter / 4 port LC adapter direct fiber connection, for added trough service, FTTx. Support RFID tag, FAT management system web access & Mobile androis app (digital tag, maps, capacity port, … etc)

Specification

Environmentalrequirment Working temperature : -40°C ~ +85°C Relative humadity : ≤85% (+30°C) Atmospheric pressure : 70Kpa ~ 106Kpa Main technical datasheet Insertion loss : ≤0.2db UPC return loss : ≥50db APC return loss : ≥60db Life of insertion and extraction : >1000 times Thunder-proof technical datasheet The grounding device is isolated with cabiniet, isolation resistance is less then 2x10⁴ MΩ/500V (DC) ; IR≥2x10⁴ MΩ/500V

Feature

Total enclosed structure. Material: PC-ABS, waterproof, dust-proof, anti-aging, protection level up to IP65. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one. Cable uplink input over pigtail running trough own path without disturbing each other using modular splitter with type SC/LC adaptor installation, easy maintenance. Distribution panel can be flipped up, distribution cable can be placed in cup-joint way, easy for maintenance and installation. Cabinet can be installed by the way of wall-mounted or poled-single mounted, suitable for both indoor and outdoor uses. Have 2 port SC adapter / 4 port LC adapter direct fiber connection, for added trough service, FTTx. Support RFID tag, FAT management system web access & Mobile androis app (digital tag, maps, capacity port, … etc)
